Applications
A collection of GIDVis use cases showing a wide variety of different samples.
Caffeine

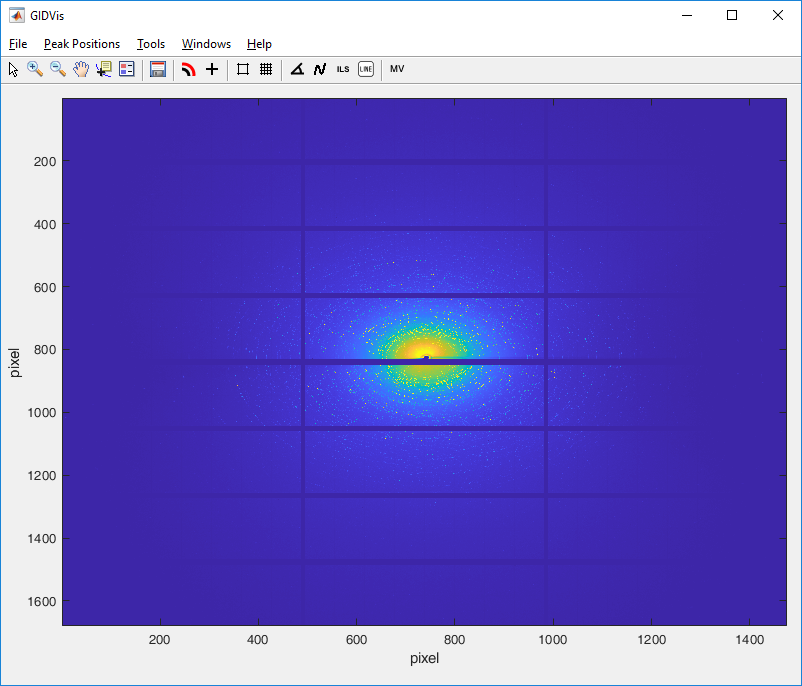

Maximum intensity image of a caffeine single crystal measurement in pixel space.
Data courtesy of B. Schrode, O. Werzer, R. Resel. Recorded at XRD1, Elettra, Trieste, Italy.
Caffeine

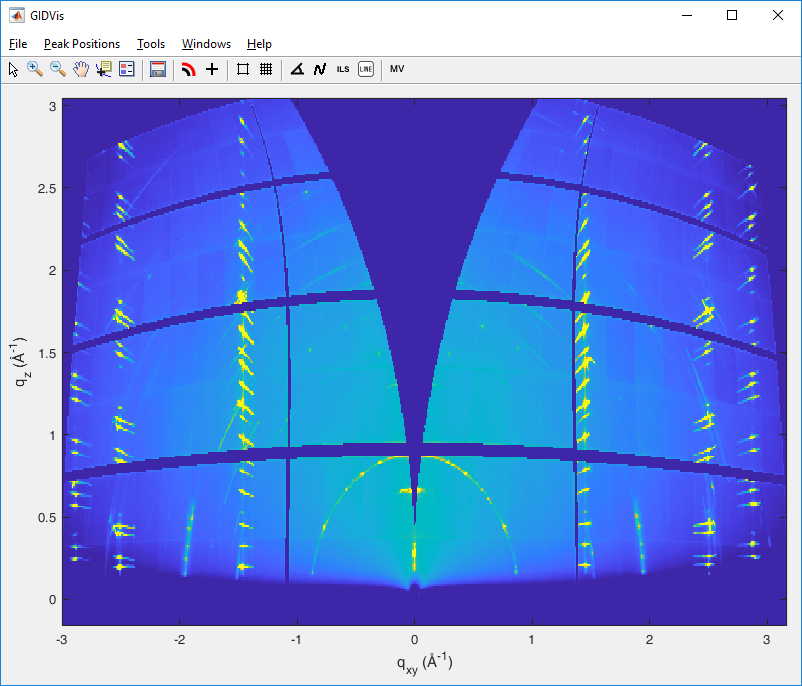

Thin film of caffeine on muscovite mica. Summed intensity of a 360 degree rotation.
Data courtesy of B. Schrode, O. Werzer, R. Resel. Recorded at XRD1, Elettra, Trieste, Italy.
Pentacenequinone

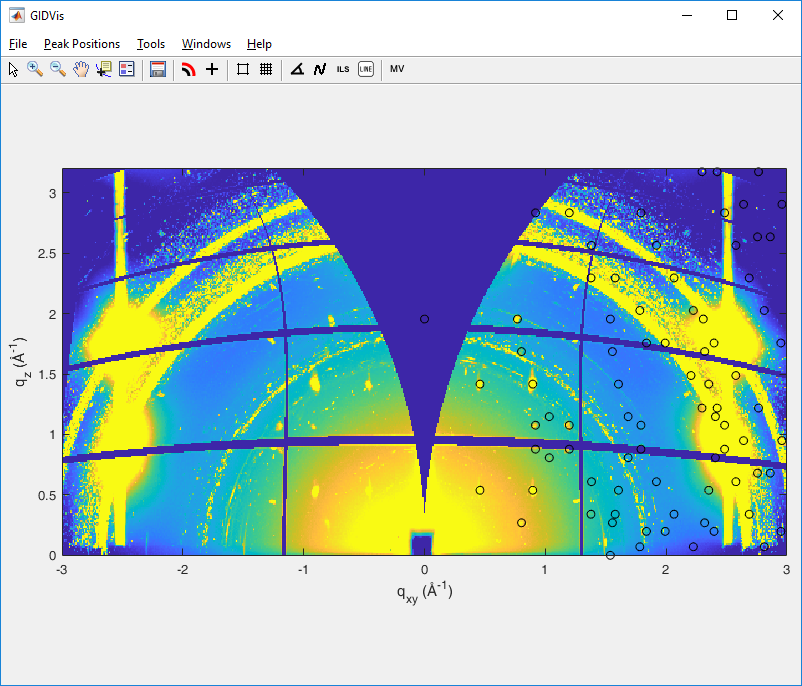

Diffraction pattern of a Pentacenequinone film on Au(111) indexed with the known bulk structure (Dzyabchenko et al.) in 140 orientation.
Data courtesy of B. Schrode, O. Werzer, R. Resel. Recorded at XRD1, Elettra, Trieste, Italy.
Pentacenequinone

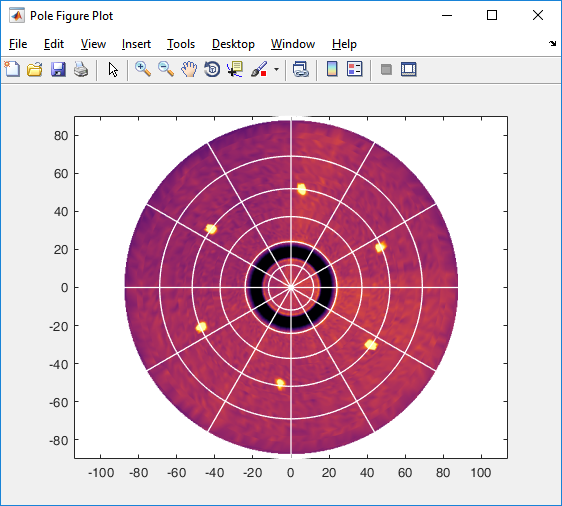

Pole figure of the 021 peak of a film of Pentacenequinone film on Au(111) in the bulk crystal structure (Dzyabchenko et al.).
Data courtesy of B. Schrode, O. Werzer, R. Resel. Recorded at XRD1, Elettra, Trieste, Italy.
Pentacenequinone

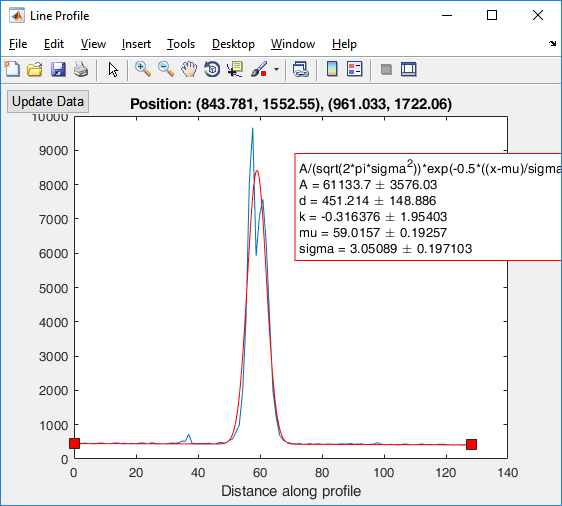

Line scan of a peak of a Pentacenequinone film on Au(111) (blue) including fit of the data (red).
Data courtesy of B. Schrode, O. Werzer, R. Resel. Recorded at XRD1, Elettra, Trieste, Italy.
Pentacenequinone

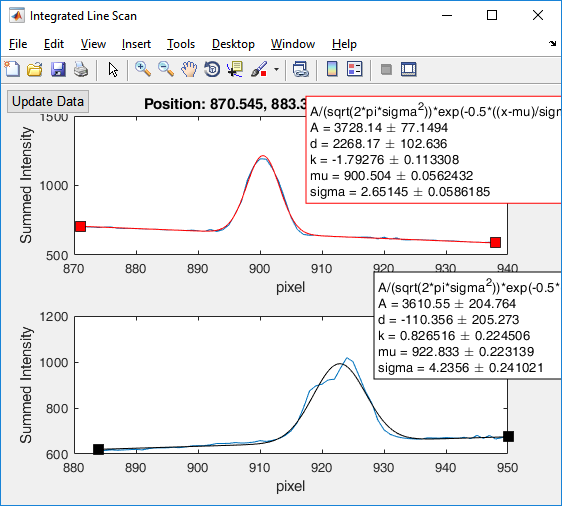

Integrated line scan of a peak of a Pentacenequinone film on Au(111) (blue) including fit of the data (red and black).
Data courtesy of B. Schrode, O. Werzer, R. Resel. Recorded at XRD1, Elettra, Trieste, Italy.
Pentacenequinone

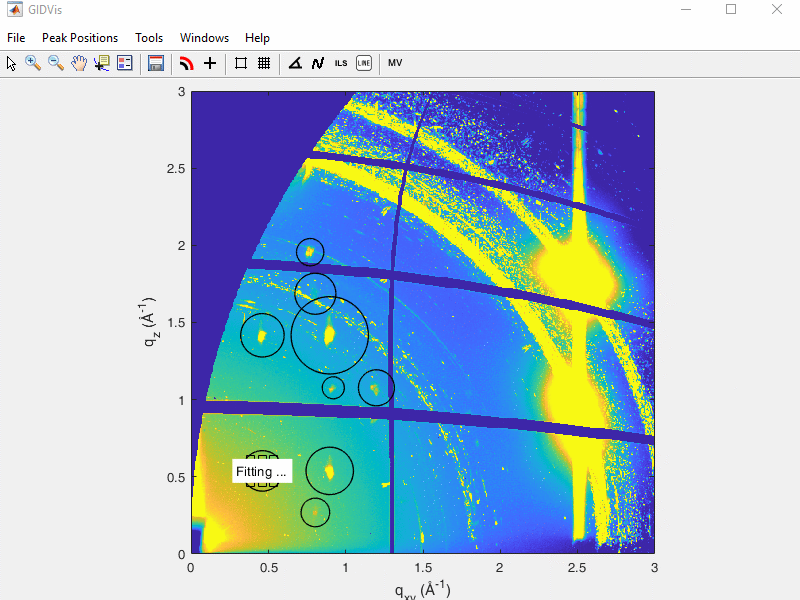

GIF animation of the automatic peak fitting of a Pentaceneqinone film on Au(111) and the fit result result (last image).
Data courtesy of B. Schrode, O. Werzer, R. Resel. Recorded at XRD1, Elettra, Trieste, Italy.
N. A.

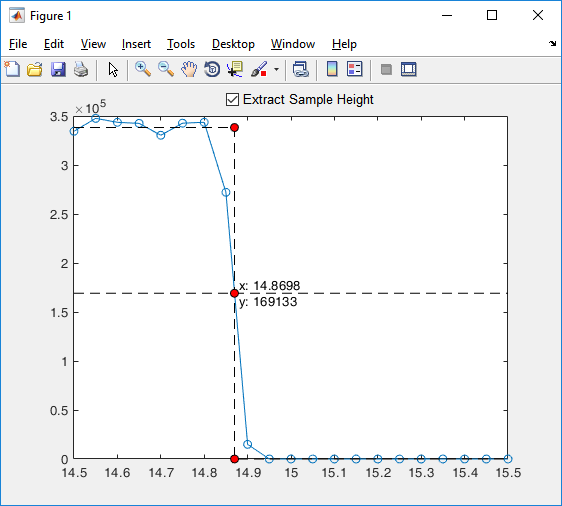

Height scan extracted of a series of images recorded using a Dectris Pilatus 2M detector.
Data courtesy of B. Schrode, O. Werzer, R. Resel. Recorded at XRD1, Elettra, Trieste, Italy.
N. A.

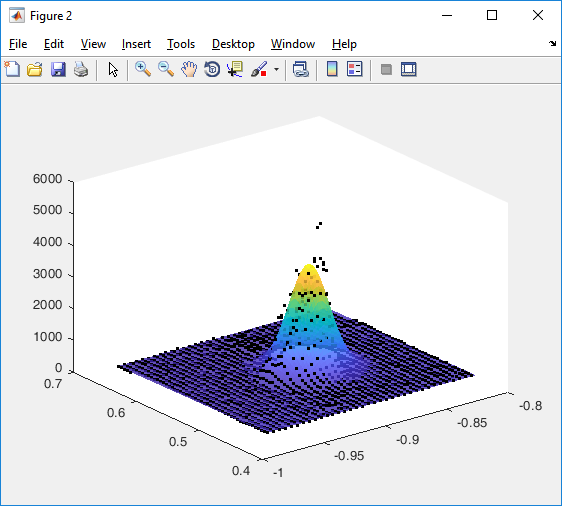

Two dimensional fit of an experimental peak.
Data courtesy of B. Schrode, O. Werzer, R. Resel. Recorded at XRD1, Elettra, Trieste, Italy.
Phenytoin

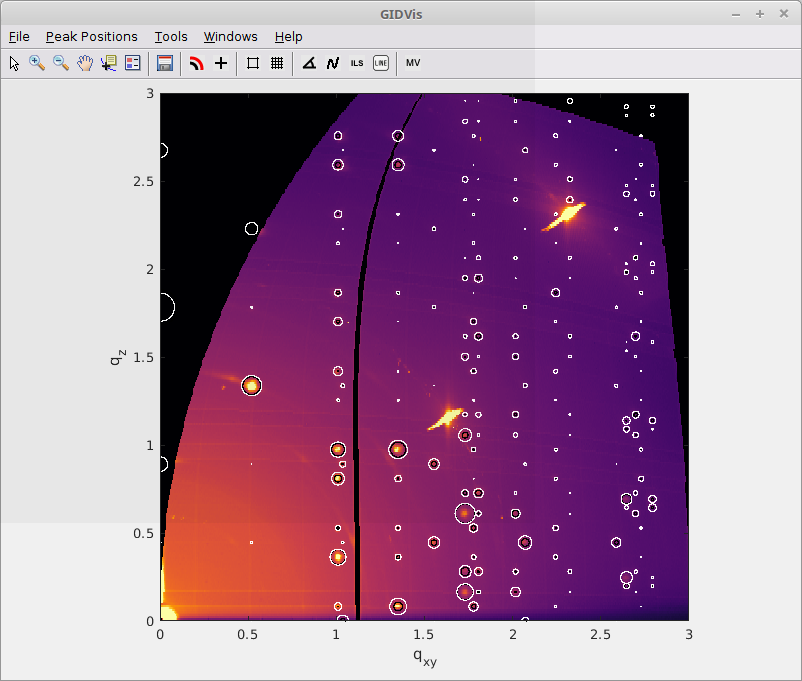

Grazing incidence diffraction pattern of the previously unknown form 2 of phenytoin on a silica surface together with a full structure solution. Center of the rings denote expected peak position, area of the rings is proportional to the expected intensity. Publication in preparation.
Data/image courtesy of D. Braun, Ch. Röthel, B. Schrode, O. Werzer. Recorded at XRD1, Elettra, Trieste, Italy.
LaB6

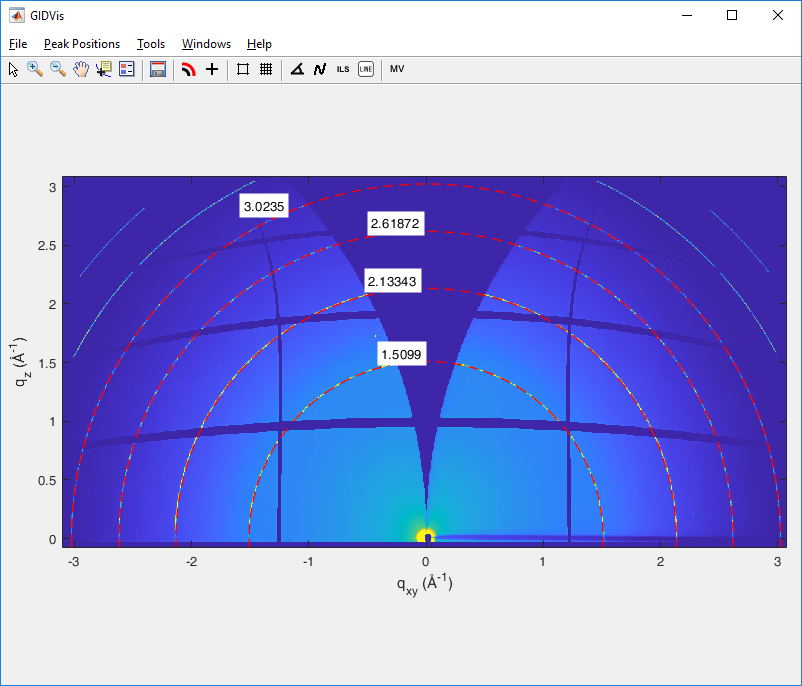

Diffraction pattern of a LaB6 capillary visualized in reciprocal space, overlayed with interactive rings (red, dashed).
Data courtesy of O. Werzer. Recorded at XRD1, Elettra, Trieste, Italy.
LaB6

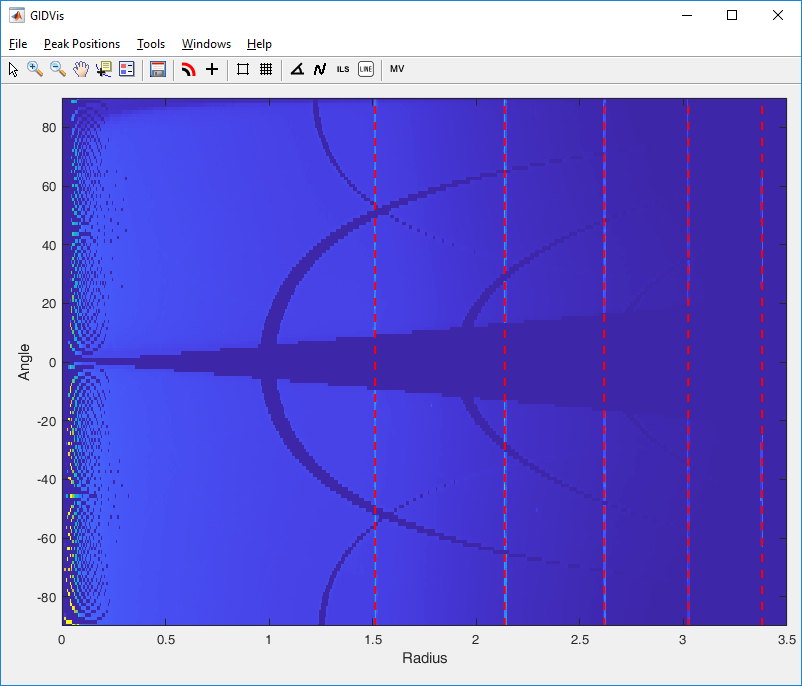

Diffraction pattern of a LaB6 capillary visualized in polar space together with the Debye-Scherrer rings (red, dashed) calculated from the *.res file.
Data courtesy of O. Werzer. Recorded at XRD1, Elettra, Trieste, Italy.
LaB6

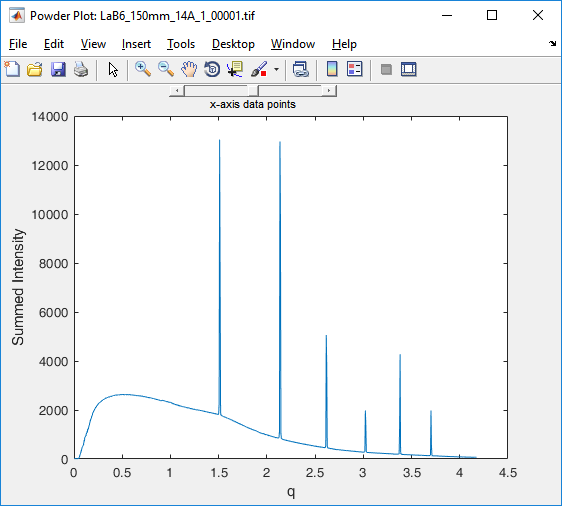

Powder plot of a LaB6 capillary measurement.
Data courtesy of O. Werzer. Recorded at XRD1, Elettra, Trieste, Italy.
LaB6

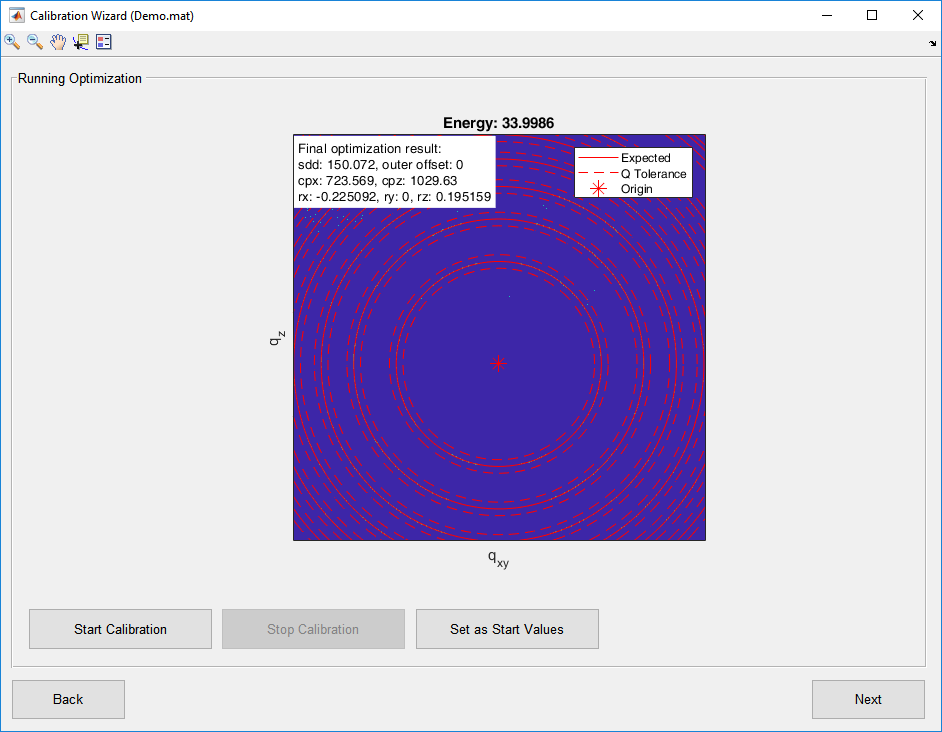

Result of the Calibration Wizard to obtain the set of parameters for reciprocal space conversion.
Data courtesy of B. Schrode, O. Werzer, R. Resel. Recorded at XRD1, Elettra, Trieste, Italy.
