Program Screenshots
A collection of screenshots of the different modules in GIDVis.

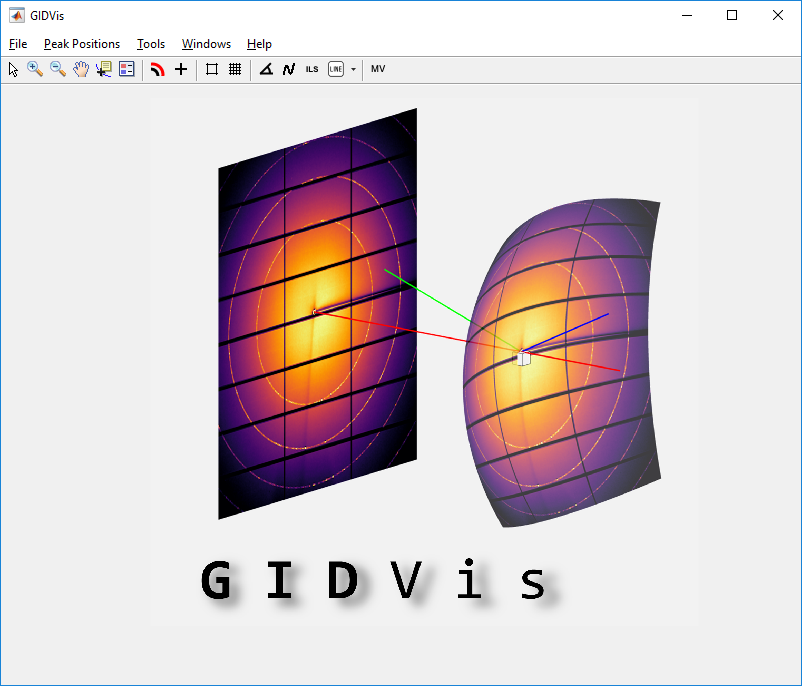

Main Window
The GIDVis main window without an image loaded.
Main Window
From top to bottom: Interact with plot, add interactive ring, crosshair and grids.
Main Window
From top to bottom: Measure distances and angles, extract line profiles and integrated line scans, obtain powder-pattern like plot, toggle map visibility.

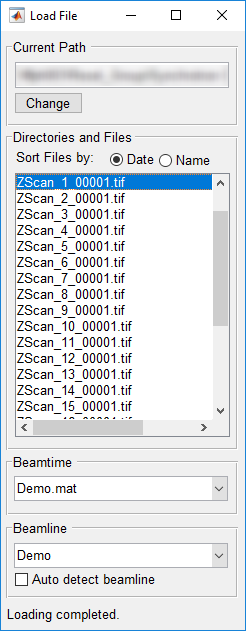

Load File Module
Select file to view, the beamtime and the experimental setup.
Toolbox

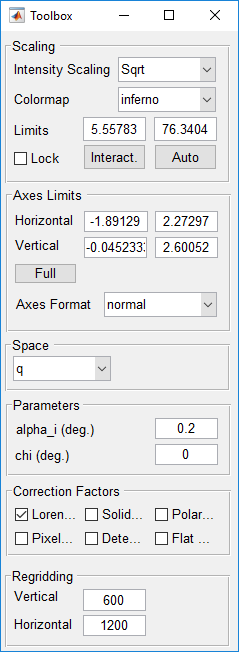

Adapt the display properties of the image, change space, adapt basic experimental parameters and apply intensity corrections.

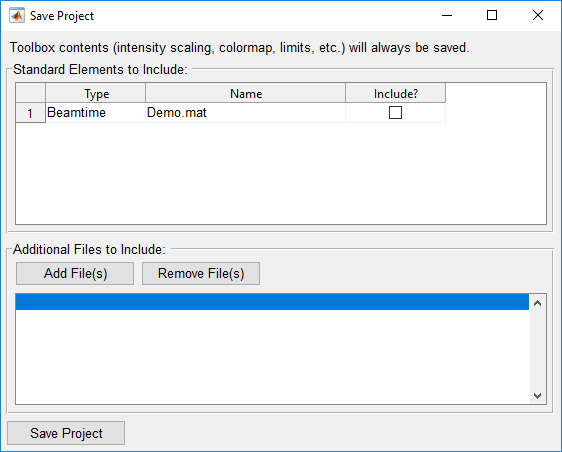

Save/Load Project
Save and reload your current work status.
Peak Finder

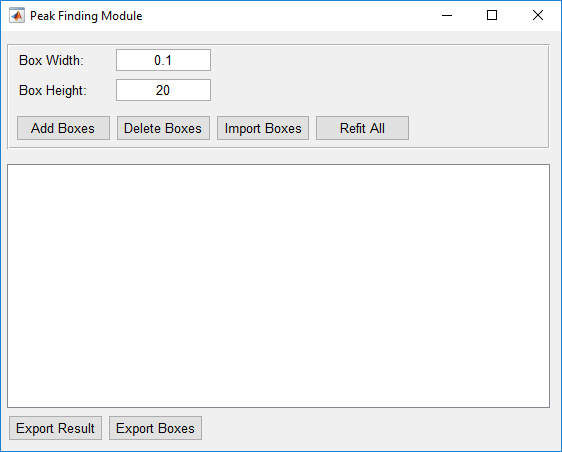

Fit two-dimensional Gaussian profiles to data.

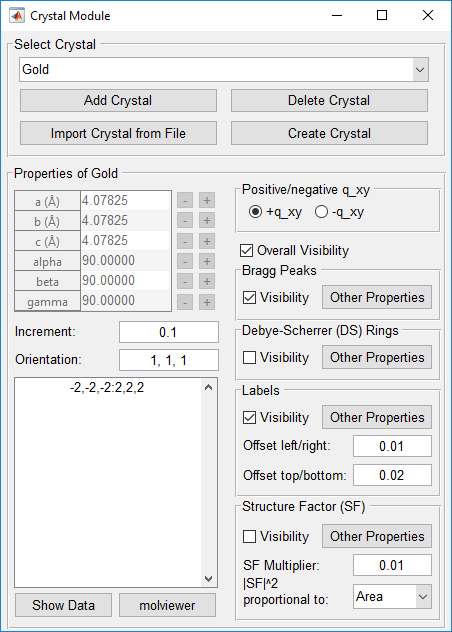

Crystal Module
Compare measured patterns with known crystal structures.

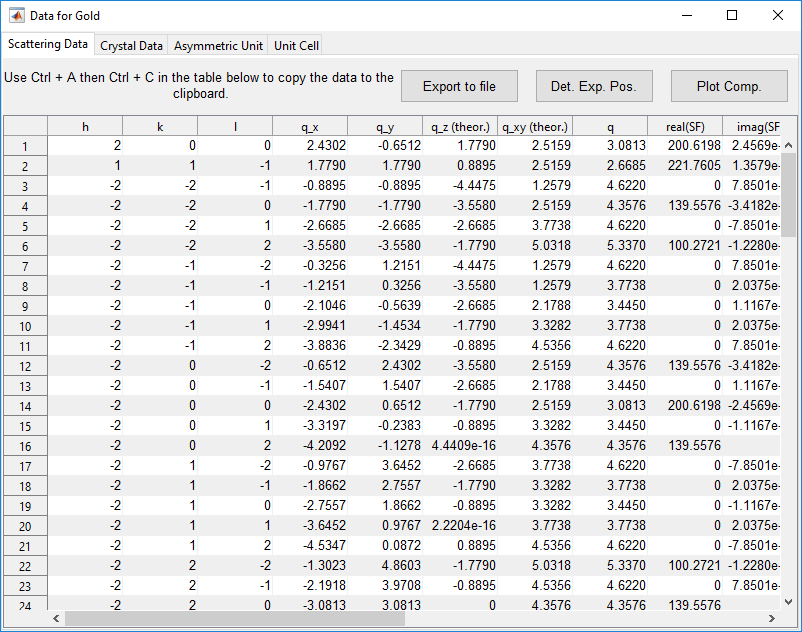

Crystal Module – Show Data
Calculation of scattering data and automatic comparison of measured and theoretical structure factors.
Multiple Scans

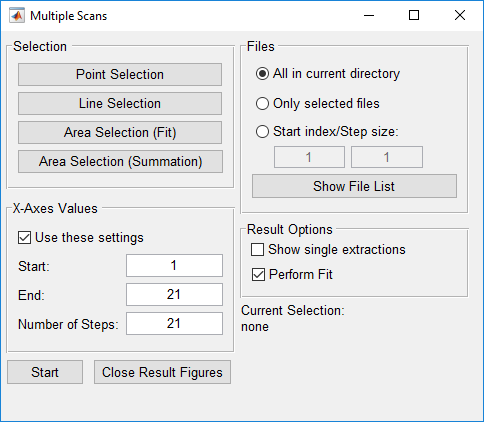

Perform the same intensity extraction on a series of images.
Beamline Setup

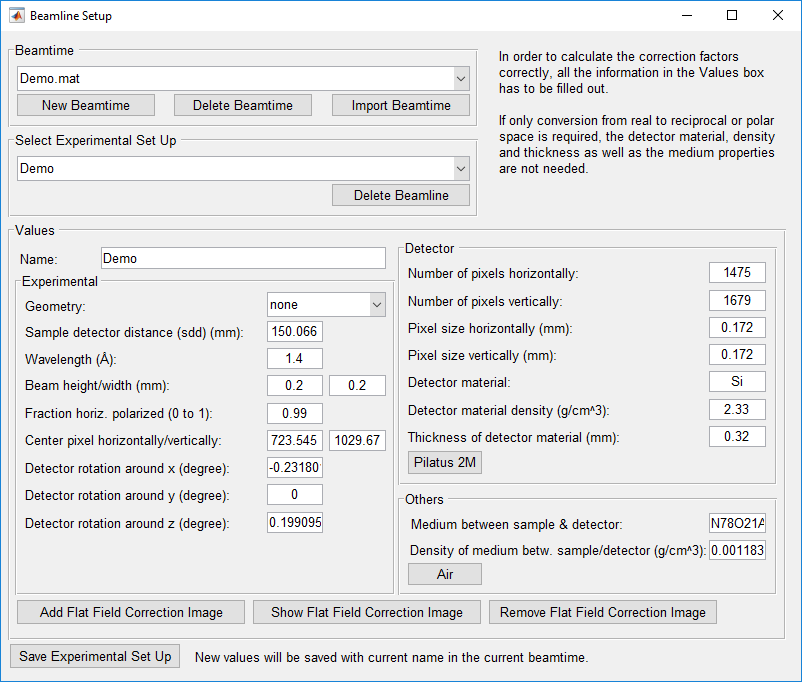

Adapt the details of your experimental setup.
Annotations

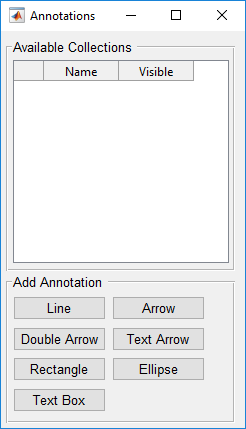

Add annotations to your image and save them.
Main Axes Settings

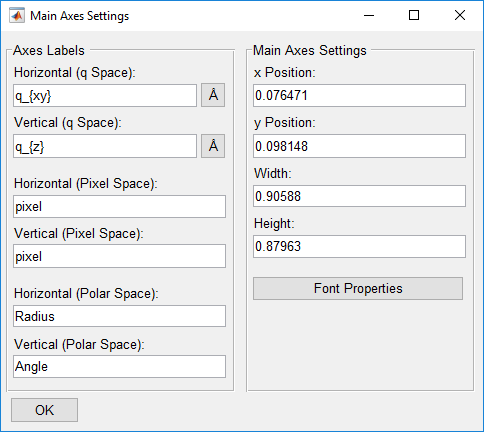

Adapt the properties of the main axes.

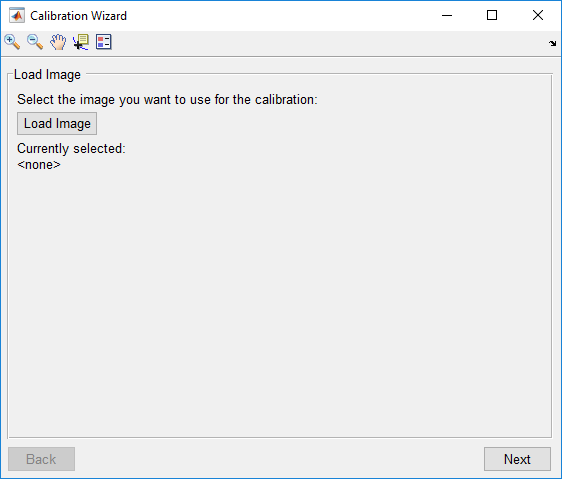

Calibration Wizard
Extract experimental setup parameters from a calibration measurement (e.g. LaB6) following an easy step-by-step wizard.
Footprint Correction
Correct recorded intensity with regard to illuminated area on rectangular samples.
Pole Figure Generator

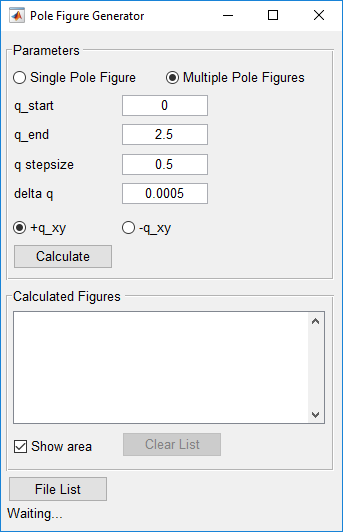

Extract pole figures from your measurement to determine epitaxial relationships.
